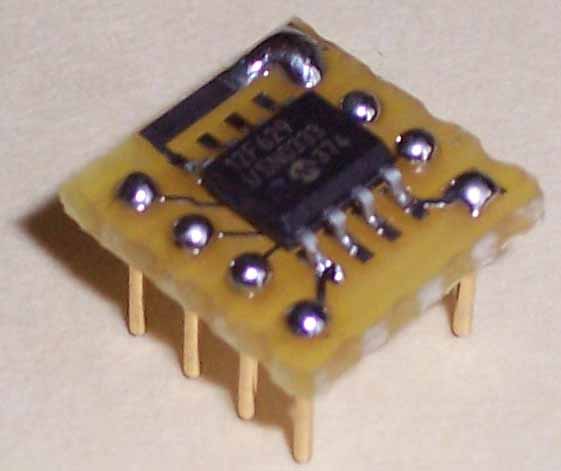

[Assembled PK-DC keyer chip picture, you'll get
it unassembled !]

Ham Radio KITS - TOP PAGE - BOOKS


NEW (5/20/2007) - PK-DC keyer chip kit



options


The PK-DC is an upgrade for the Hendricks QRP Kits DC-xx or Simple Keyer stock keyer chip. It is a simple surface mount kit including a circuit board, SO-8 keyer chip, 8 gold plated pins and an 8 pin socket used in assembly. It offers:

  • 8 wpm to 49 wpm speed range
  • paddle speed control
  • three, 40 character, non-volatile memories (settings saved without power)
  • iambic a or b modes
  • Bug mode
  • Autospace mode
  • Beacon mode with adjustable delay between sends
  • Reverse paddle mode
  • 5 dit-dah tune mode


  • Download the PK-DC manual and the diagram

    Here is a bottom view of the assembled PK-DC keyer chip kit: [bottom view of Assembled PK-DC keyer chip picture, you'll get
it unassembled !]


    chip kit price (no manual) is $5 + shipping/handling
    the SO-8 keyer chip only (no board, pins or socket) is $3 + shipping/handling



    to purchase the PK-DC kit, print out a Kit order form to figure your order manually
    or try our: javascript order form to let your browser do the math!
    OR to pay with a credit card use the Paypal shopping add to cart button below.

    options
    Pay me securely with your credit card through PayPal!
    Pay me securely with your Visa, MasterCard, Discover, or American Express card through PayPal!
    Visa MasterCard Discover American Express

    Downloadable files for PK-DC

    The Acrobat files of complex diagrams (like the schematic) may not view well on your computer screen - suggestion: use the magnifier to zoom in for better detail or print out the file.

    pkdcb.pdf (28k) - an Acrobat file of the PK-DC manual

    pkdc.pdf (9k) - an Acrobat file of the PK-DC diagram

    Chuck Carpenter, W5USJ, was kind enough to supply the following docs for the PK-DC:

    PK-DCKeyerMenus.pdf (15k) - an Acrobat file of the PK-DC cheat sheet

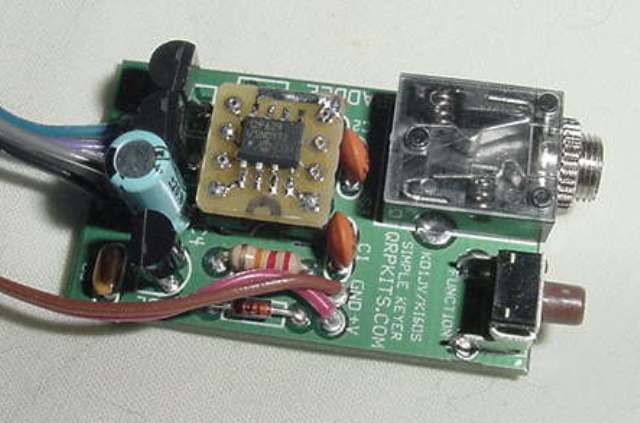

    PK-DCkit-1.JPG (33k) - a JPEG picture of the PK-DC mounted in a Simple Keyer kit

    PK-DC_-_SKC-Va.pdf (341k) - an Acrobat file of using the PK-DC chip without the kit
