September 9, 2019 => back in stock, thanks for waiting

May 19, 2018 - New - Prescaler kit

Please email:

with any questions.

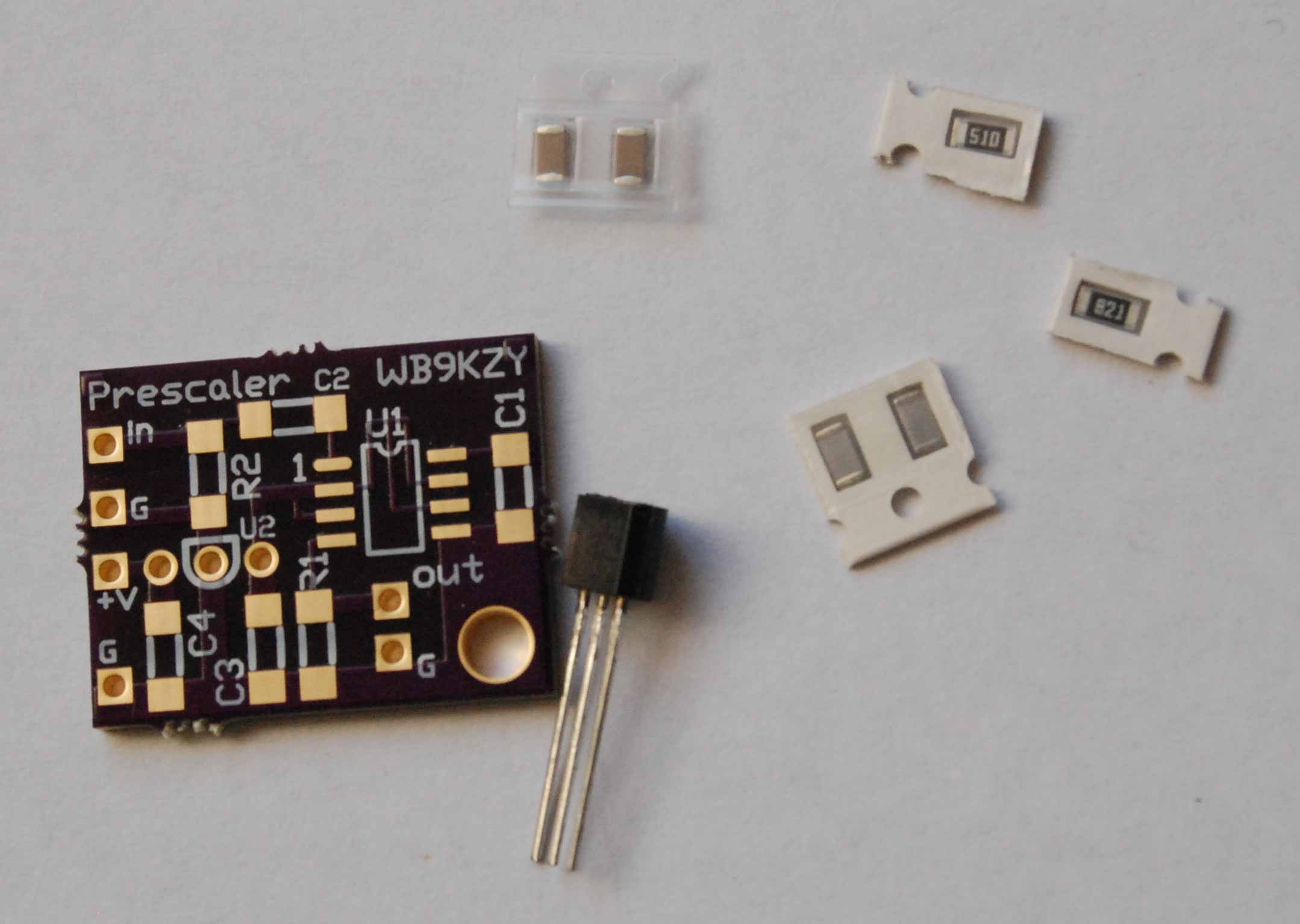

[prescaler partial kit parts picture -
click for larger version]
The Prescaler kit has been brought back in either a full kit or a partial kit (the prescaler chip itself is NOT supplied). This chip, the MC12080 from On Semiconductor is still available from distributors like Digi-key or Mouser.

If you buy the partial kit please avoid vendors on ebay, there are a lot of counterfeit versions of the MC12080. Some may divide by 2 (there are several chips which are pin compatible with the MC12080 but NOT function compatible). Some may do absolutely nothing.

The board also now has a solder mask and silk screening.

The Prescaler kit is $12 plus postage/handling
Price of the Prescaler partial kit is $4 plus postage/handling

The Prescaler kit is a simple divide by 10 ECL circuit which can be used to extend the range of most PIC based frequency counters from 50 MHz up to 500 MHz. The kit uses surface mount components except for the 78L05 regulator.

The kit includes the 5 volt regulator, two .1 uf bypass capacitors, two 1000 pf coupling capacitors, a 51 ohm input resistor and an 820 ohm output loading resistor along with the circuit board. The passive components are 1206 sized while the prescaler is in an 8 pin SO package - these are both relatively easy to solder but the kit is not for surface mount kit beginners. The circuit board is about 1.3 by 0.7 inches and has one mounting hole sized for 4-40 hardware (1/8 inch) or metric M3.
Printed manuals available for an additional charge or save money by downloading (Right click/save target as) and printing the prescaler kit manual , schematic diagram and hookup diagram all in Adobe Acrobat (.pdf) format. also a diagnostic measurements for troubleshooting text file

Print out a Kit order form to figure your order manually
or try our: javascript order form to let your browser do the math!

User Questions:
Is it normal for the prescaler to output a frequency when the input is unconnected ?
Yes, my prescaler does this at roughly 20 MHz.
If this bothers you, Earl, N8ERO, suggests this fix, add a 100 k ohm resistor across capacitor C1. This results in slightly lower sensitivity.

What is the sensitivity of the prescaler ?
Here is some customer measured sensitivity data.

For larger quantity purchases, to combine with other items, for DX purchase price or for any other questions, please send an email to me, Chuck Olson, WB9KZY at:

with your question.
