September 14, 2015 - back in stock, thanks for waiting
May 21, 2014 - Bug Descratcher III kit

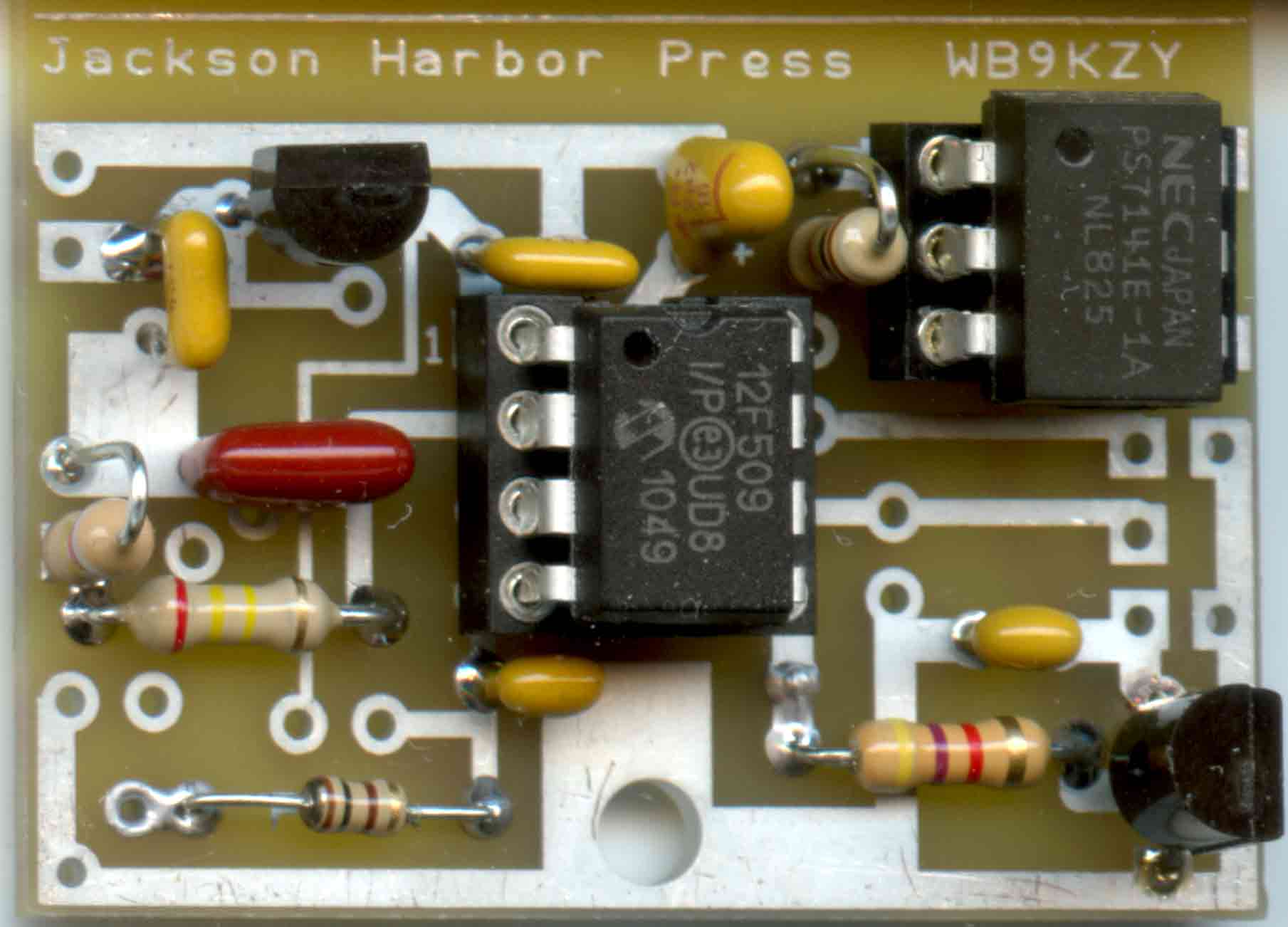

The Bug Descratcher III kit is the third version of a
from the September 1992 issue of QST by WX7G, Dave Cuthbert.
The Bug Descratcher III removes the "scratchiness" encountered with semi-automatic keys (bugs) due to contact
bounce. It can also be used with straight keys. It features:
a debounced output to eliminate scratchy sounding keying
optional solid state relay (SSR) output to key nearly any rig (solid state, tube positive or tube negative keying voltage)
available as a board only kit
board size: 1.25 x 1.5 inches
operates from 9 to 13.8 volt battery or power supply
minimizes the input to output delay (previous versions had about 6 mS of delay)
price is $12.00, add the SSR option for $4 more, + shipping/handling
printed documents are NOT included, please print/view your own from the pdf files provided
For pricing, availability or any other questions, please send an email to me, Chuck Olson, WB9KZY at:
with your question or the items you want and we'll email you a Paypal invoice
Kit Documentation: download (Right click/save target as) and print the Bug Descratcher III kit
schematic diagram and
all in Adobe Acrobat (.pdf) format.
Here is a simple diagnostic test file in case of trouble.
To purchase the Bug Descratcher III kit, print out a Kit
order form to figure your order manually
to let your browser do the math!
OR to pay with a credit card use the Paypal shopping cart buttons below.
|Pay me securely with your credit card through PayPal!|
For larger quantity purchases, to combine with other items, for DX purchase price
or for any other questions, please send an email to me, Chuck Olson, WB9KZY at:
with your question or the items you want and we'll email you a Paypal invoice.
