September 14, 2015 - back in stock, thanks for waiting

March 19, 2012 - Iambic to Single Paddle kit

The Iambic to Single Paddle kit is our version of a circuit from the October 2009 issue (page 61) of QST by W0NFU, Larry Winslow.

press the Add to cart button at the left to put a $10 Iambic to Single Paddle kit in your Paypal shopping cart

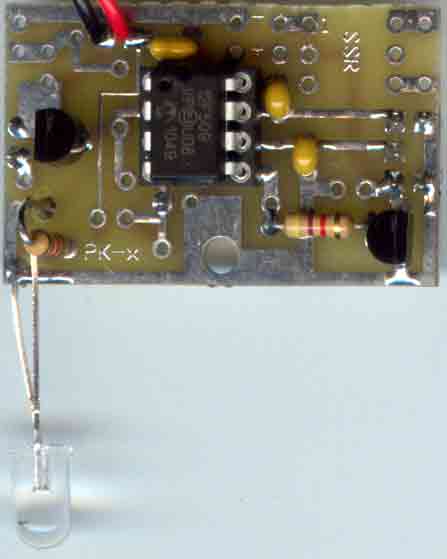

[Iambic to Single Paddle kit circuit board picture]
  • PIC based circuit
  • makes using an iambic keyer with a dual lever (iambic) paddle easier for those used to a single lever paddle
  • connects between your iambic paddle and your iambic keyer
  • only allows one paddle input to the keyer to be actuated at one time, just like a single lever paddle
  • toggle iambic operation back on with a touch of the optional, builder provided momentary switch
  • provided LED goes on with iambic operation and is normally off in regular single paddle mode
  • low power usage (1 uA or less when "sleeping"), LED goes off after 11 seconds of inactivity
  • board size: 1 x 1.5 inches
  • operates from 3 volt battery
  • price is $10 + shipping/handling
  • printed documents are NOT included, please print/view your own from the pdf files provided




  • For pricing, availability or any other questions, please send an email to me, Chuck Olson, WB9KZY at:



    with your question or the items you want and we'll email you a Paypal invoice

    Kit Documentation: download (Right click/save target as) and print the Iambic to Single Paddle kit manual , schematic diagram and hookup diagram all in Adobe Acrobat (.pdf) format.
    Also, a text file of diagnostic measurements.

    To purchase the Iambic to Single Paddle kit, print out a Kit order form to figure your order manually
    or try our: javascript order form to let your browser do the math!
    OR to pay with a credit card use the Paypal shopping add-to-cart button below.

    press the Add to cart button at the left to put a $10 Iambic to Single Paddle kit in your Paypal shopping cart
