Island Memory II kit - 1/31/2011 - SOLD OUT

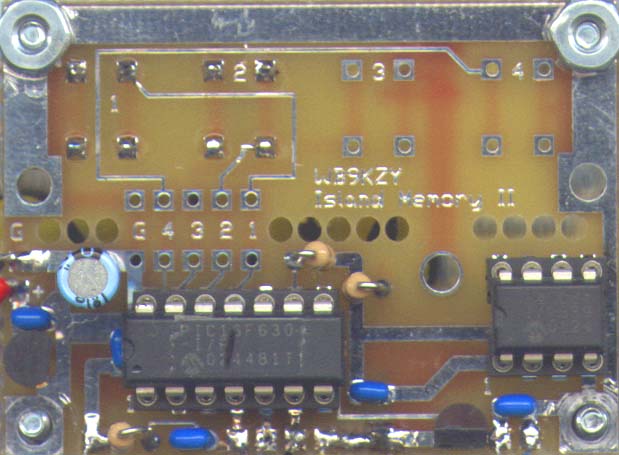

![[Island Memory II circuit board picture - click for larger view of board ]](imem2sm.jpg)
straight key memory, works with bug, keyer or key
attempts to capture the unique timing of an operator's fist
variable sidetone frequency
works as code practice oscillator
8 memories in two banks of 4
4 momentary switches built in, no wiring needed
selectable looping (beacon mode) for each memory
low power, sleep mode: 1 uA w/ 9 volt battery
over 90 char message length, non-volatile memory
4 selectable playback speeds
kit includes circuit board & components shown
add your enclosure, piezo, jacks and a 9V battery snap
Size is 2.2 x 1.5 inches - fits into a candy tin with room to spare
Printed manuals available for an additional charge or save money by downloading
(Right click/save target as)
and printing the manual ,
schematic and
hookup diagram
MorseXpress (800 238 8205)
also sells the Island Memory II kit offering easy credit card ordering via
their 800 number or on the web.
Downloadable files for the Island Memory II kit
The Acrobat files of complex diagrams (like the schematic) may not
view well on your computer screen - suggestion: use the magnifier to zoom in
for better detail or print out the file.
Imem2sch.pdf (49k) - an Acrobat file of the Island Memory II schematic
Imem2f.pdf (32k) - an Acrobat file of the Island Memory II manual
Imem2hu.pdf (35k) - an Acrobat file of the Island Memory II hookup diagram
