Piezo Loudenator

January 26, 2019 - initial release

kit options
Please note that the postage/handling fee is added to the cart only after Paypal knows the shipment destination.

Click pictures for a larger view:

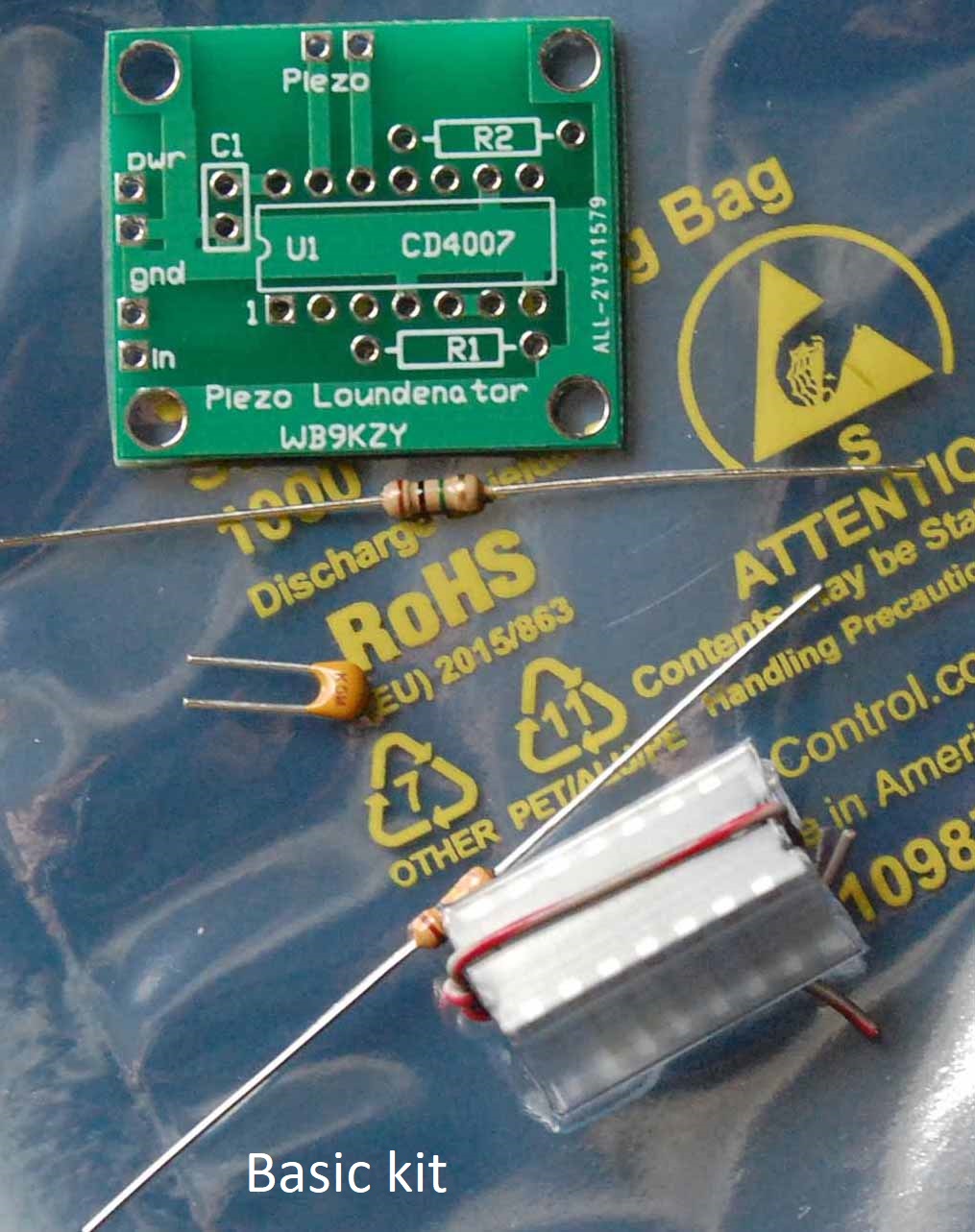

[Piezo Loundenator basic kit parts picture -

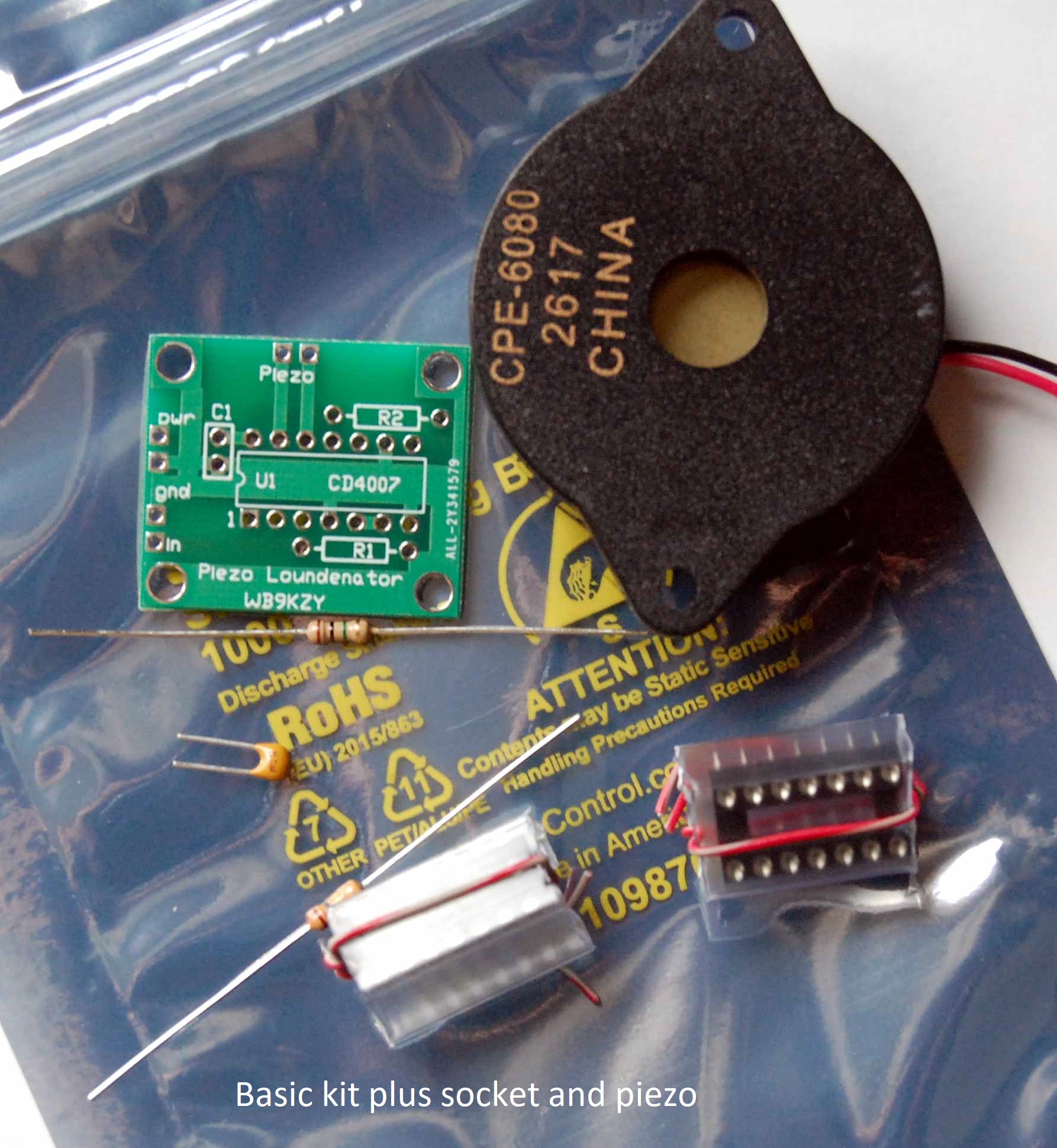

click for larger version] [Piezo Loudenator basic kit plus socket and piezo -
click for larger version]


Please contact Chuck:

with any questions

The Piezo Loudenator kit allows the builder to increase the volume level from a piezo sounder while retaining the low power consumption of the original circuit.

  • board size (1.2 by 1.025 inches)
  • kit is available in two option levels:
  • $3: Basic kit: circuit board, CMOS chip, two resistors, capacitor
    $6: Basic kit plus CPE-6080 large piezo and 14 pin machine DIP socket
  • Note that the builder may need to add an enclosure or other parts to complete the kit
  • printed documents are NOT included, please print/view your own from the pdf files provided


  • Download(right click - save target as) the manual , schematic and hookup to view or print your own.


    Print out a Kit order form to figure your order manually
    or try our: javascript order form to let your browser do the math!
