PICPADL kit - May 28, 2019 - initial release

options
Please note that the postage/handling fee is added to the cart only after Paypal knows the shipment destination.

Click picture for a larger view:

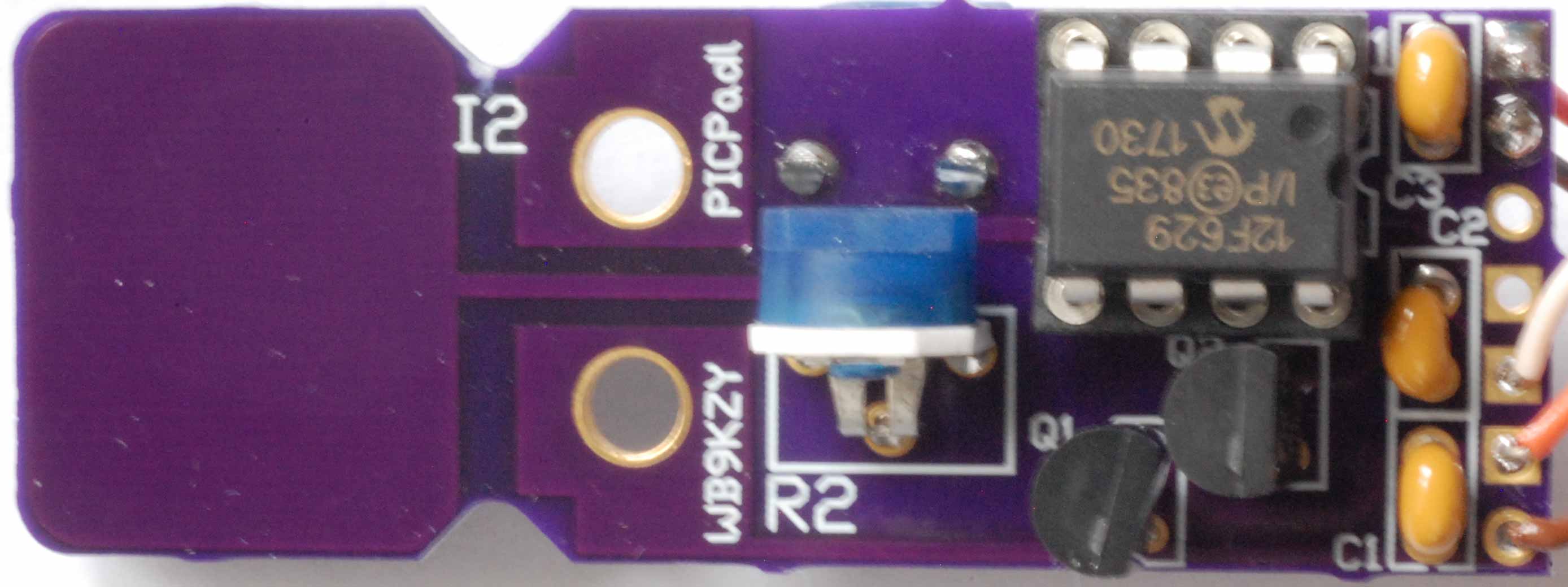

[PICPADL kit assembled picture -
click for larger version]
Please contact Chuck:

with any questions

The PICPADL kit provides the user an adjustable pair of touch switches to use for paddle input to the keyer of their choice

  • design is a dual capacitive touch switch
  • low power: at 5 Volts: .7 mA active, after 45 seconds of inactivity: 9 uA sleeping
  • touch sensitivity is individually controlled with two trim pots
  • kit includes the circuit board and all electrical board mounted components
  • just add your enclosure, output jack and a battery/power supply connector
  • CPO (Code Practice Oscillator) tone output: follows I2 paddle touches
  • board size: about .7 by 2 inches
  • pricing: $15 for base kit, $17 for base kit with mounting hardware for an Altoids or other tin plus postage/handling
  • printed documents are NOT included, please print/view your own from the pdf files provided

  • Download(right click - save target as) the manual , schematic , kit in an Altoids tin and technical questions and answers to view or print your own.

    Print out a Kit order form to figure your order manually
    or try our: javascript order form to let your browser do the math!
