Feb. 13, 2014 - SOLD OUT - Simple Keyer kit

The Simple Keyer kit provides an easy way to send Morse code. It features:

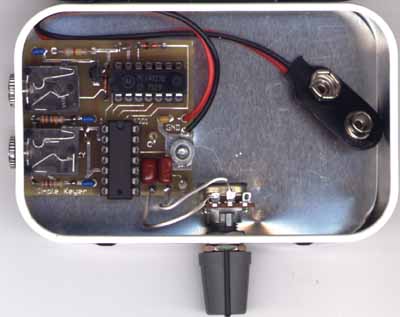

[Simple keyer picture - click for larger version]
  • No sidetone
  • No memories
  • No menus
  • No microprocessor
  • No iambic modes
  • No fun of any kind ;)
  • pot speed control
  • 4 to over 30 WPM range
  • complete kit
  • uses 9V battery
  • or can be run from any power source from 2 to 18 volts
  • low power usage: less than 1 mA active current
  • less than 1 uA standby
  • based on a neat design by N1HFX
  • If memories/sidetone are needed, consider adding the Island Memory II kit

    • For more information on the kit please download (Right click/save target as) the Simple Keyer kit manual and schematic diagram both in Adobe Acrobat (.pdf) format.

    Also available is a text file of voltage and resistance readings for an operational Simple Keyer kit.

    For larger quantity purchases, to combine with other items, for DX purchase price or for any other questions, please send an email to me, Chuck Olson, WB9KZY at:


    with your question or the items you want and we'll email you a Paypal invoice.
