May 20, 2025 - Morse Dial Timer kit
please email with questions/comments:

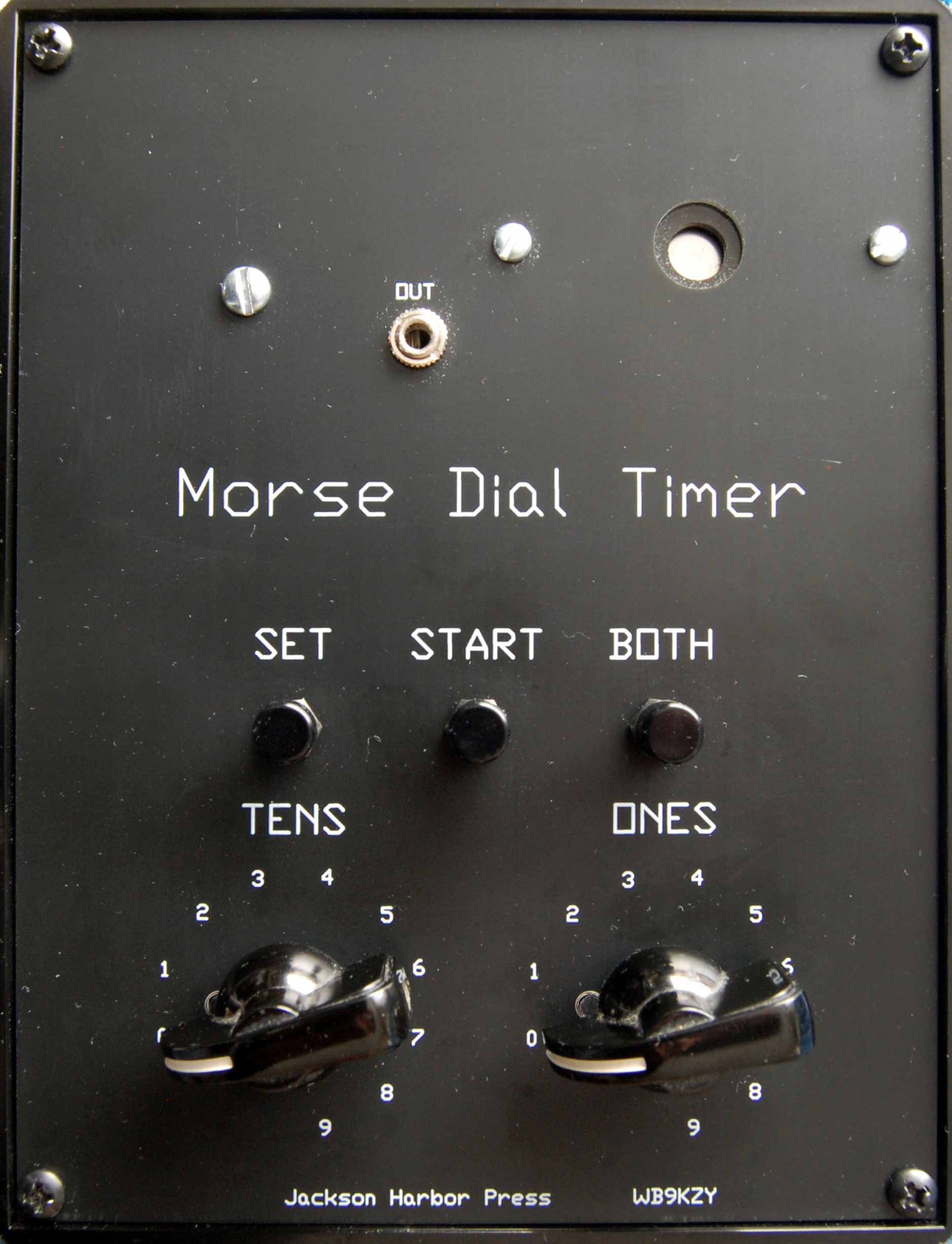

![[Morse Dial Timer kit picture - click for larger view ]](mordialtop2.jpg)
dial set timer kit, Morse code based
settable 1 to 99 minutes, or 10 to 990 minutes in x10 mode
accurate timing via a 32 kHz watch crystal
low power design, 20 uA at 3 volts
Morse beacon capability built in
60 char message length
all parameters stored in eeprom
kit includes circuit board, components, front panel, enclosure, switches, piezo, jack and a battery holder
enclosure measures about 6 7/8 x 5 1/4 x 2 1/4 inches, heavy phenolic, Davies Molding 260
add your solder, wire and battery
ask to have your message preprogrammed
Price (no printed documentation) is $47 + shipping/handling
Print out a Kit
order form to figure your order manually
OR try our: javascript order form
to let your browser do the math
Printed manuals are NOT provided with the kit, please download
(Right click/save target as)
the
manual ,
schematic ,
connection photo,
enclosure photos and
board photos.
Also here is the
EEPROM data structure and a
message recording example
Here is a Youtube Short video of the Morse Dial Timer being used at the Illinois Railway Museum to drive a telegraph sounder (through a Keyall):
https://youtube.com/shorts/mRhXfInpoIo
