NEW (01/29/2002) - Son of Zerobeat

February 28, 2014 - back in stock - thanks for waiting

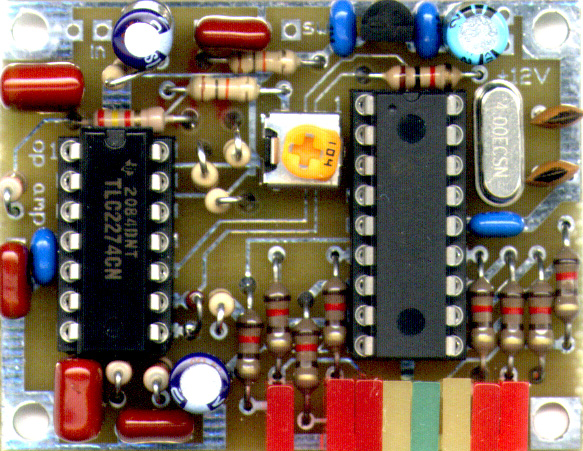

[Son of Zerobeat circuit board picture - click for larger version] Son of Zerobeat is our version of the original Zerobeat project published in Circuit Cellar Magazine in 1996 by Ed Nisley, KE4ZNU.

Son of Zerobeat has 7 LEDs which graphically indicate the frequency of a received CW audio tone. Adjust your transceiver's frequency until the center green LED lights and you are within +/- 10 Hz of zero beat with the transmitting station.

  • one pot audio detector setting
  • board size (2 by 1.5 inches)
  • offset frequency setable from 400 to 1200 Hz with a switch press
  • default offset frequency is 600 Hz
  • all board mounted parts including machine pin sockets come with kit
  • just add your metal enclosure, +12V power jack, audio jack and switch to complete the kit
  • Kit price including manual is $28 + $3 USA shipping/handling
  • Kit price (No manual) is $25 + $3 USA shipping/handling
  • DX (outside the USA) add $7.00 to USA prices (total of $10 DX shipping)
  • Daniel, ON3DDR, provided this neat video of his Son of Zerobeat kit, thanks Daniel !

  • Download the manual - parts placement diagram and schematic and save $3 by printing your own!

    Note that the board plating appears corroded, however it should not affect soldering.
    Suggestion from a customer: use a brass brush to shine up the bottom traces before soldering.

    Print out a Kit order form to figure your order manually
    or try our: javascript order form to let your browser do the math!

    press the Add to cart button at the left to put a $25 Son of Zerobeat kit in your Paypal shopping cart
    Pay me securely with your credit card through PayPal!
    Pay me securely with your Visa, MasterCard, Discover, or American Express card through PayPal!
    Visa MasterCard Discover American Express
    Inquire via email for pricing of the Son of Zerobeat PIC chip alone or PIC chip + board only.


    Downloadable files for Son of Zerobeat

    The Acrobat files of complex diagrams (like the schematic) may not view well on your computer screen - suggestion: use the magnifier to zoom in for better detail or print out the file.

    szbmodop.pdf (6k) - an Acrobat file of optional modifications to the Son of Zerobeat

    zerob8.pdf (65k) - an Acrobat file of the Son of Zerobeat manual

    zerobsch.pdf (33k) - an Acrobat file of the Son of Zerobeat schematic

    zerobdi2.pdf (90k) - an Acrobat file of the Son of Zerobeat parts placement diagram

    zbhookut.pdf (31k) - an Acrobat file of the Son of Zerobeat hookup diagram

    zerbfix.txt (2k) - a text file to help in fixing a Son of Zerobeat

    zbpict2.pdf (155k) - an Acrobat file of the Son of Zerobeat annotated picture

    bigzb.jpg (229k) - a larger picture of the Son of Zerobeat circuit board
