The PK-4 SSR keyer kit - 10/05/2005

12/23/2013: see the new SMT Keyer kit, PK-4 version

The PK-4 SSR is the latest in the PK series of keyer kits. It replaces the popular PK-4 kit but adds an optional Solid State Relay (SSR) 6 pin chip for tube keying, similar to the Keyer Accessory kit . The Solid State Relay is rated at +/- 120 mA and +/- 400 V. Some cathode keyed rigs such as the Knight T-150 may require the Keyall due to larger than 120 mA currents. If in doubt, measure the current and voltage with your rig. The PK-4 is fully pin compatible with the Norcal keyer. The PK-4 is pin compatible with the PK-3, PK-2 and PK-Basic (Tick and K8 chips, too) with the addition of a 10k ohm pullup resistor between pin 1 and 4 of the keyer chip socket. The PK-4 shares the pot speed control of the previous PK series and the Norcal keyer but it has a large number of new additional features. Here are a few highlights:

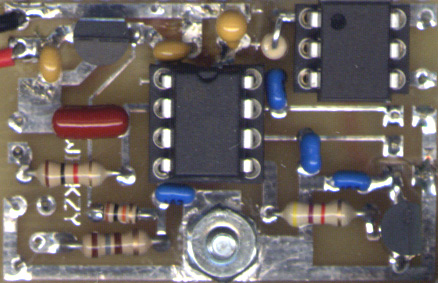

[PK-4 SSR board picture]

  • pot or paddle speed control, 5 to 50 WPM
  • two 80 character memories plus an 80 character callsign memory
  • OR optionally two 80 and two 40 character memories
  • memories & settings retained without power (EEPROM)
  • Ultimatic or Iambic A or B keying modes
  • beacon mode, variable delay, up to 60 seconds
  • adjustable element weighting
  • variable sidetone frequency
  • low standby power (about 7 ua at 5 V, with regulator)
  • small size (1 by 1.5 inches)
  • Kit price (no doc) is $18.00 + $3.00 USA shipping and handling
  • Kit with optional SSR: price (no doc) is $22.00 + $3.00 USA shipping and handling
  • add a large piezo speaker to a kit purchase for $4
  • PK-4 chip (no doc) is $5.00 + $3.00 USA S/H
  • DX (outside the USA) add $7.00 to USA prices (total of $10 DX shipping added)


  • (multiple purchases of the PK-4 chip (no doc), will be sent in a single anti-static bag)

    Printed manuals available for an additional charge or save money by downloading and printing your own copy of the manual , schematic and hookup diagram .
    Don't get sub menus ?? See the sub menu doc

    Print out a Kit order form to figure your order manually
    or try our: javascript order form to let your browser do the math!

    Or to use a credit card with Paypal, press the add-to-cart below:
    options
    Pay me securely with your credit card through PayPal!
    Pay me securely with your Visa, MasterCard, Discover, or American Express card through PayPal!
    Visa MasterCard Discover American Express

    For larger quantity purchases, manual pricing or to combine with other items, just send an email to:

    with the items you want and we'll email you a Paypal invoice.

    Downloadable files for the PK-4 SSR

    The Acrobat files of complex diagrams (like the PK-4 schematic) may not view well on your computer screen - suggestion: use the magnifier to zoom in for better detail or print out the file.

    pk4ssr2.pdf (58k) - PK-4 SSR schematic

    pk4ssrh.pdf (54k) - PK-4 SSR manual in Acrobat format

    pk4hu2.pdf (32k) - PK-4 SSR Hookup diagram in Acrobat format


    pk4diag.txt (1k) - quick PK-4 resistance / voltage checks text file

    pk4ts.htm (1k) - PK-4 Troubleshooting guide

    pk4menus.pdf (11k) - a PK-4 menu "cheat sheet" by Chuck Carpenter, W5USJ (thanks, Chuck)

    stalkin.pdf (16k) - Stalking the Wild Multipress! - an Acrobat file of a hardware method to solve the problem of pressing 2 or 3 switches at the same time.

    modeab.pdf (8k) - an Acrobat file explaning the differences between Iambic mode A and B

    ultimat.txt (4k) - a text file on the Ultimatic mode
