December 28, 2013 - SMT (Surface Mount Technology) keyer kit

keyer chip

The SMT Keyer kit is a Surface mount version of the PK-4 keyer kit (without the SSR), the Norcal and Pacificon keyers, the MegaPK-II, MegaPK-game, and the PK-Basic keyer kit.
The SMT Keyer shares the same basic hardware (with a few exceptions) between all of those mentioned 8 pin keyers. The user picks the keyer chip that they want. It features:

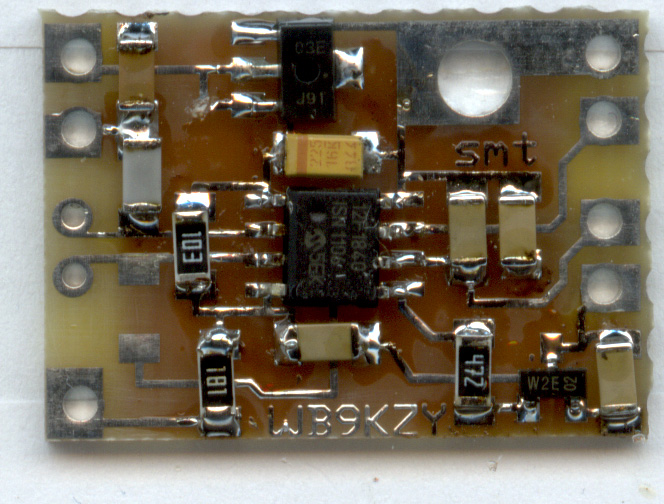

[SMT Keyer circuit board picture -
click for larger version]
  • pot or paddle speed control
  • board size: .7 x 1.0 inches
  • low standby power (about 1 ua with regulator)
  • printed documents are NOT included, please print/view your own from the pdf files provided

  • The PK-4 SMT keyer kit with 5V regulator (board plus board mounted parts, no documentation) is $15 + shipping/handling

    The MegaPK-II SMT keyer kit with 3V regulator (board plus board mounted parts, no documentation) is $15 + shipping/handling

    The MegaPK-Game SMT keyer kit with 3V regulator (board plus board mounted parts, no documentation) is $15 + shipping/handling

    The Norcal or Pacificon keyer kit without a regulator (board plus board mounted parts, no documentation) is $12 + shipping/handling

    The PK-Basic keyer kit without a regulator (board plus board mounted parts, no documentation) is $11 + shipping/handling


    Kit Documentation: download (Right click/save target as) and print the SMT keyer kit SMT keyer build doc , hookup diagram , stocklists in Adobe Acrobat (.pdf) format or text file.

    To purchase the SMT Keyer kit, print out a Kit order form to figure your order manually
    or try our: javascript order form to let your browser do the math!
    OR to pay with a credit card use the Paypal shopping cart add to cart button below.

    keyer chip
    Pay me securely with your credit card through PayPal!
    Pay me securely with your Visa, MasterCard, Discover, or American Express card through PayPal!
    Visa MasterCard Discover American Express

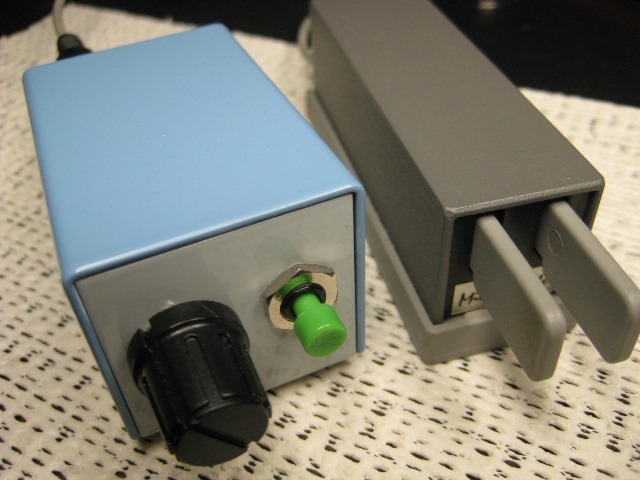

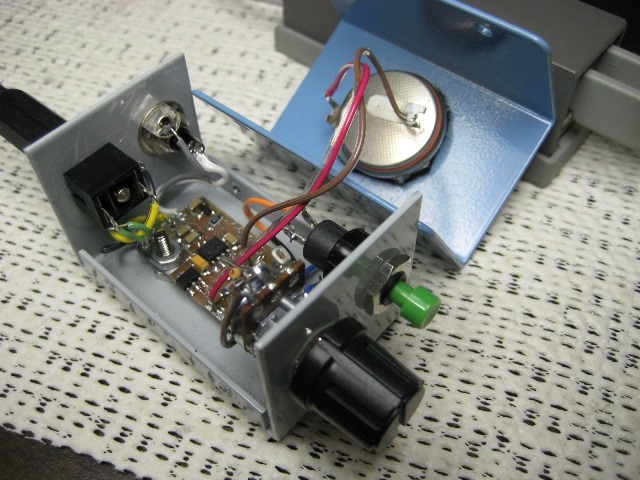

    Chuck, W5USJ, was kind enough to send along a couple of pictures of his PK-4 SMT Keyer. It's housed in an LMB/Heeger CR-211 enclosure. A lithium cell with solder tabs is velcro'd to the lid.
    Thanks, Chuck !
    [PK-4 SMT Keyer by W5USJ -
click for larger version] [PK-4 SMT Keyer by W5USJ -
click for larger version]















    For larger quantity purchases, to combine with other items, for DX purchase price or for any other questions, please send an email to me, Chuck Olson,

    with your question or the items you want and we'll email you a Paypal invoice.
