The WB9KZY ham radio project page

Here are some ham radio related projects that you can build - most use PIC microcontrollers, especially the 16F84. Source code is provided so that the builder can understand and customize the project. I use the Microchip MPASM assembler program. I'd appreciate hearing any comments or questions - Please send them by e-mail to: wb9kzy at wb9kzy dot com .

Best Regards,
Chuck Olson, WB9KZY, Jackson Harbor Press

12/14/2004 - A brief article on a Memory Doubler for the Elecraft K2 is now available. This is a fairly simple hardware mode to get twice as many memories in your K2.

11/30/2004 - the SMT board is now available for sale. This is a new version of the previously offered board, shown below. The 48 TQFP package is omitted but several other package styles are offered on the 5 sub boards - these sub boards can be snapped apart.

11/14/2004 - tried the Palm Keyboard PIC source code with a Palm V keyboard, it works but be aware that the Palm V keyboard is NOT compatible with the Palm Keyboard interface board which is intended for the Palm m100/III/VII keyboard. I soldered small pin sockets to the Palm V keyboard and then used short jumper wires to connect to the PIC board.

03/04/2004 - Added the Palm Keyboard interface board page and the Palm Keyboard PIC source code as a new project.

10/20/2003 - Added the Island Keyboard kit documentation to the project page - the kit has been discontinued.

09/28/2003 - the 16F84 parts have sold out - if you are interested in any of the projects, I can probably port (transfer) them to the less expensive 16F628 part, email wb9kzy at wb9kzy dot com if interested.

03/12/2003 - the SMT boards have sold out - please email wb9kzy at wb9kzy dot com if you are interested in new SMT prototype boards. 07/29/2001 - I have a limited number of surface mount IC prototyping / experimenting boards for sale. As seen below, the board is a plated thru, fiberglass board. It has 4 SMT patterns (on one side) for the following SMT packages: [SMT circuit board picture]

  • one 48 TQFP (Analog Devices 9830 DDS)
  • one 28 SSOP (Analog Devices 9850 DDS)
  • two 16 TSSOP (Analog Devices 9832,5 DDS)


  • Click here for more info on ordering the smt board.

    02/04/2003 - Added the Memdoub 2 kit documentation to the project page - the kit has been discontinued.

    02/11/2002 - Added the Island Memory kit documentation to the project page - the kit has been discontinued.

    11/29/2001 - Revised the code keybdf84.zip (40k) for the Morse keyboard. The original program would send a brief "glitch" (about .3 ms long) at the start of a code element when used with a Tick or PK-Basic keyer chip. The PK-3 keyer chip didn't have a problem.

    11/06/2001 - Revised the schematic (138k) for the PC interface to the SSS frequency counter. The tone decoder filter now uses a 51k ohm resistor instead of the original 10k resistor.

    11/3/2001 - Altered the program siggen3a.asm (37k) (AD9850 DDS based VFO by Curtis Preuss, WB2V, as converted and modified by Bruce Stough, AA0ED, and Craig Johnson, AA0ZZ) to add tunable, eeprom stored memories.
    Two versions are included for both the 16F84 and the 16F628.

    10/25/2001 - Revised the programs (138k) for the PC to SSS frequency counter. There are now 3 different compiled Qbasic programs for each of the lpt port addresses.

    09/03/2001 muter.zip - (54K) - Source code and schematic for the Muter - A PIC based Infrared Remote controlled relay using a remote control setup for a Sony TV. Please email if you need to purchase a programmed PIC.

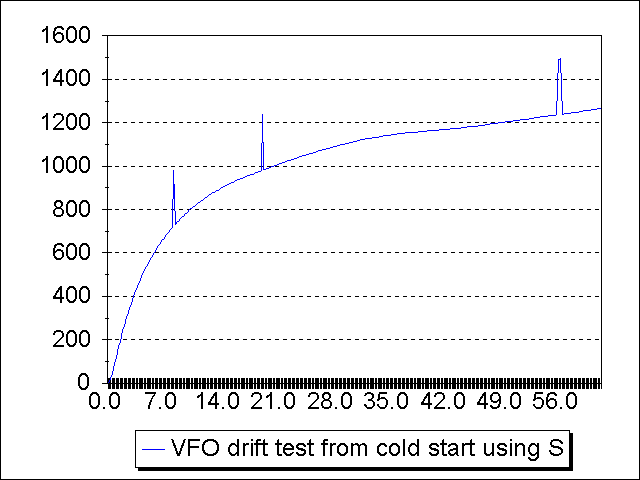

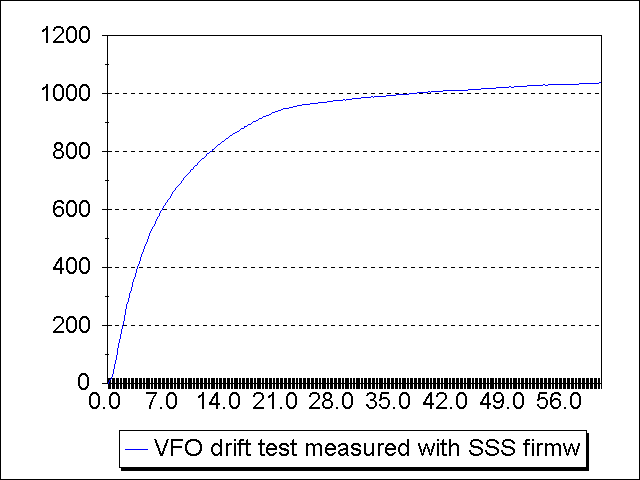

    08/21/2001 - Ideas for the Arizona ScQRPions SSS frequency counter kit - Click HERE (6 kb) for a copy of an email sent to the qrp-l email list on the subject of ideas for modifying and using the SSS kit. Click HERE for a zip file with the Qbasic software and schematic for the PC to SSS interface. Click HERE (7 kb) OR HERE (7 kb) for an example of a frequency plot done with the PC to SSS interface. X axis is time after VFO powerup in minutes, Y axis is drift in Hertz.

    08/02/2001 - Martin Clausen has created and released free versions of both a high voltage ( 13V ) and a low voltage (ISP 5V ) programmer for the PIC flash parts (16F87x, 16f62x, 16F84).

    08/02/2001 speed84a.zip - (65K) - Source code and schematic for an updated Morse code speedometer. The resolution of the timer has been improved to 10 us. A 0.5 wpm LED was added to the circuit and also the PIC will now report the element length in 10 us chunks via the piezo (in Morse code). The programmed (or blank) 16F84 is available from Jackson Harbor Press.



    07/28/2001 - Here is a brief post made to the Ham-PIC email list concerning the 16F628 PIC - any users of the 16F84 should read it ;)

    01/06/2000 - If you don't currently have access to a programmer for the 16F84 OR if you just need another 16F84 chip, Jackson Harbor Press is now selling programmed or blank 16F84 chips for $6.00 plus $2.00 s/h in the USA. Print out this special chip order form , fill it out and mail it in along with your check/money order payable to Jackson Harbor Press. Note that the PIC 16F84 is a Flash based microcontroller which can be reprogrammed with different code later either by the user or by Jackson Harbor Press.

    02/18/2000 keybdf84.zip - (41K) - Source code and schematic for a PIC 16F84 based Morse code keyboard interface for your keyer - uses a keyer or keyer chip (the PK-3 will work fine ;) along with an external serial eeprom chip and an IBM compatible PC AT keyboard to send Morse code. Up to 10 memories are available. It will function without the serial eeprom with two 31 character memories to try out the design. The serial eeprom adds another 8 memories of up to 255 characters. The serial eeprom is available from Digi-Key. The programmed (or blank) 16F84 is available from Jackson Harbor Press
    There is now a KIT version of this project called the Island Keyboard .

    02/08/2000 10minf84.zip - (59K) - Source code and schematic for a PIC 16F84 based 10 minute ID timer / beacon. It uses the PIC along a piezo speaker and a keying transistor to accurately time 10 minutes for ID purposes. The delay can be programmed for any length from 0 to 99 minutes, 59 seconds. At the end of the delay a Morse code message of up to 60 bytes is sent. During the delay time, an LED is "winked" and optionally, the piezo speaker is "clicked" once a second. The programmed (or blank) 16F84 is available from Jackson Harbor Press

    01/31/2000 speedf84.zip - (64K) - Source code and schematic for a PIC 16F84 based Morse code speedometer. It uses the PIC along with either a piezo speaker or a 2 digit LED to display the speed of a Morse code stream. The programmed (or blank) 16F84 is available from Jackson Harbor Press

    01/12/2000 skmf84.zip - (63K) - Source code and schematic for a PIC 16F84 based straight key memory - uses an RC clock along with an external serial eeprom to record and play Morse code messages recorded with your key, keyer or bug. It will function without the serial eeprom to try out the design. The serial eeprom is available from Digi-Key. The programmed (or blank) 16F84 is available from Jackson Harbor Press

    01/06/2000 tonef84.zip - (104K) - Source code and schematic for a PIC 16F84 based tone generator - uses an RC clock along with an 8 bit R-2R DAC to generate a shaped, keyable sine wave variable frequency audio oscillator. It's suitable for code practice or sidetone with the addition of an external audio amplifier and speaker. The programmed (or blank) 16F84 is available from Jackson Harbor Press

    10/28/99 mgf84-10.zip - (53K) - Source code and schematic for a PIC 16F84 based marker generator - uses a 10 MHz crystal to generate gated markers at 250, 100, 50, 25, 10 and 5 KHz. The programmed (or blank) 16F84 is available from Jackson Harbor Press

    10/26/99 markers.pdf - (70k) Examining and Modifying Marker Generator Output - a 5 page article on marker generator output spectrum and how it can be modified by changing the duty cycle of the waveform. A simple 1 IC circuit is presented for creating narrow pulses triggered by the leading edge of a square wave marker generator. A version of this circuit is also included for the VE3DNL marker generator.

    10/26/99 markr509.zip - (46K) - Source code and schematic for a PIC 12C509 based marker generator - uses a 4 MHz crystal to generate gated markers at 100, 50, 25, 10 and 5 KHz. This code is a slight modification of the 16F84 code above for the smaller and cheaper 12C509 - it should also work with the 12C508 device although this hasn't been tried. Inquire by e-mail to: wb9kzy at wb9kzy dot com if you are interested in a programmed chip.

    10/25/99 markrgen.zip - (56K) - Source code and schematic for a PIC 16F84 based marker generator - uses a 4 MHz crystal to generate gated markers at 100, 50, 25, 10 and 5 KHz. The programmed (or blank) 16F84 is available from Jackson Harbor Press


    SOLD OUT!! The following kits have sold out - the kit documentation is downloadable for building your own version.

    VE3DNL Marker Generator - 12/18/98 - The VE3DNL Marker generator is no longer available - This neat little circuit uses 1 IC and a crystal to generate markers at 5, 10, 20 and 40 KHz.

    PK-2 keyer kit - 06/08/2000 - the PK-2 keyer kit is no longer available
    The PK-3 keyer kit is the suggested replacement.

    Island Memory kit - 02/11/2002 - the Island Memory kit has been discontinued.

    Memory Doubler 2 kit - 02/04/2003 - the MD2 kit has been discontinued.

    Island Keyboard kit - 10/20/2003 - the Island Keyboard kit has been discontinued.
